Same checkpoint: sim or real¶

Stage 3: one Hub checkpoint, one run_policy call, the simulated SO-101 here and the physical one with a two-line change.

By the end of this page SmolVLA, a vision-language-action model from the Hub, has driven the simulated SO-101 from two cameras and your sentence, you hold the same call for the physical arm, and you have watched the gate stop that call naming the checkpoint. The sim fence runs on a laptop with no GPU after an 865 MB download.

One checkpoint, one call¶

lerobot/smolvla_base reads an instruction, observation.state and three camera images, and returns a chunk of action vectors. It ships no SO-101 statistics, so the embodiment is written inline in native units: the sim's joint names as state_keys and action_keys, dim_policy padding six joints to the width the model expects, obs_rename routing your camera names onto the three it declares (default fills the one you did not mount):

import os
os.environ["STRANDS_TRUST_REMOTE_CODE"] = "1"
from strands_robots import Robot
from strands_robots.policies import create_policy

robot = Robot("so101")
robot.add_camera(name="front", position=[0.22, 0.025, 0.6], target=[0.22, 0.025, 0])
robot.add_camera(name="wrist", parent_body="so101/gripper", position=[0.058, 0.0, -0.029], target=[-0.024, 0.0, -0.297])
joints = robot.robot_joint_names("so101")
embodiment = {"state_keys": joints, "action_keys": joints, "dim_policy": "pad", "obs_rename": {
    "front": "observation.images.camera1", "wrist": "observation.images.camera2", "default": "observation.images.camera3"}}
policy = create_policy("lerobot_local", pretrained_name_or_path="lerobot/smolvla_base", embodiment=embodiment)
result = robot.run_policy(policy_object=policy, instruction="pick up the cube", duration=3.0, control_frequency=30.0)
print(result["status"])
print(result["content"][0]["text"])
report = result["content"][1]["json"]
print(report["actions_applied"], report["action_errors"], round(report["elapsed_s"], 1))
robot.cleanup()

You should see:

success
Policy complete on 'so101'
LerobotLocalPolicy | pick up the cube
20.8s | 90 steps | sim_t=3.060s
90 0 20.8

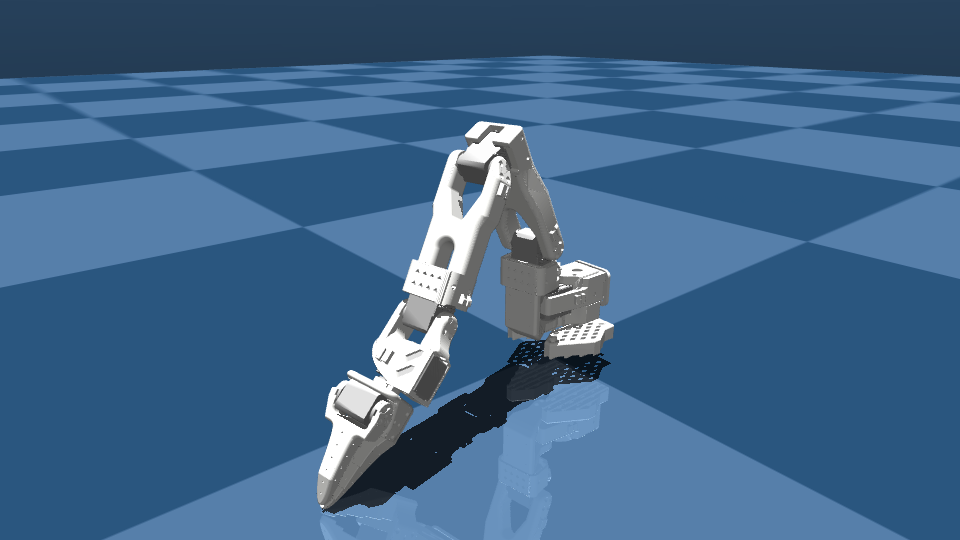

where SmolVLA left the simulated arm after ninety steps

Ninety of ninety actions applied; the 20.8 s is a laptop CPU inferring 50-action chunks while the simulator waits. SmolVLA reads the instruction, so the words shaped the actions. STRANDS_TRUST_REMOTE_CODE=1 is the consent lerobot checkpoints need.

The same call on the real arm¶

Change how the robot is built and the keys its state arrives under; the checkpoint and the call do not change:

import os
os.environ["STRANDS_TRUST_REMOTE_CODE"] = "1"
from strands_robots import Robot
from strands_robots.policies import create_policy

robot = Robot("so101", mode="real", port="/dev/ttyACM0",
              cameras={"front": {"type": "opencv", "index_or_path": 0}, "wrist": {"type": "opencv", "index_or_path": 1}})
keys = [f"{m}.pos" for m in ("shoulder_pan", "shoulder_lift", "elbow_flex", "wrist_flex", "wrist_roll", "gripper")]
embodiment = {"state_keys": keys, "action_keys": keys, "dim_policy": "pad", "obs_rename": {
    "front": "observation.images.camera1", "wrist": "observation.images.camera2", "default": "observation.images.camera3"}}
policy = create_policy("lerobot_local", pretrained_name_or_path="lerobot/smolvla_base", embodiment=embodiment)
result = robot.run_policy(policy, instruction="pick up the cube", duration=10.0)
print(result["status"])
print(result["content"][0]["text"])
robot.cleanup()

mode="real" picks the lerobot driver, port= is the arm's USB device (Real arm finds it), cameras= is lerobot's camera dict under the sim cameras' names. The driver reports the arm as shoulder_pan.pos to gripper.pos, so those are the keys; the rest of the dict is unchanged. On hardware run_policy blocks until duration elapses, n_steps actions were applied or stop_task() is called; start_task(...) does not block.

Why the same object works on both¶

Top, the checkpoint lerobot/smolvla_base: an instruction, observation.state and three camera images in the units it was trained on go in, an action chunk in the same units comes out. Under it the one green element, a single Policy object from create_policy with an embodiment. Under that a dashed embodiment map layer with two dialects: sim, keys 1 to 6 in radians converted both ways, cameras front and wrist; driver, shoulder_pan.pos to gripper.pos in degrees bound as they are, cameras front, wrist and top. At the bottom two robots, Robot("so101") in MuJoCo and Robot("so101", mode="real") on the lerobot driver, each fed actions and returning observations through its dialect, each reached by the same run_policy(policy_object=policy) call drawn as a wire from the policy down each side. Footnote: the checkpoint never sees a robot.

The checkpoint never sees a robot. It sees observation.state, the numbers under the keys the embodiment names, and three images under the names it declares; it returns action in the same layout. Everything between those tensors and a body is the embodiment map: in the simulator the state arrives as joints 1 to 6 in radians, on the lerobot driver as shoulder_pan.pos to gripper.pos in degrees, and each dict binds its own keys. A checkpoint that carries its statistics can name embodiment="so101" and have the map convert units both ways (LeRobot local shows an ACT checkpoint trained on a real SO-101 doing that). Policy, checkpoint and call are identical; only the backend changes.

What it does not mean¶

smolvla_base is a base model, not fine-tuned on this arm or this table: the page shows the contract, one Policy object and one run_policy call on two backends, not task success. A checkpoint that performs a task on your arm comes from Teach it; measured rates live on the robot page, each with its source.

Behind the gate¶

As a tool, the real arm's execute and start carry the checkpoint and the embodiment dict in policy_config and stop for a human first. The gate runs before the port opens or the config is read, so a laptop with no arm reaches it:

import asyncio
from strands_robots import Robot

arm = Robot("so101", mode="real", port="/dev/null")

async def call(action, **fields):
    tool_use = {"toolUseId": "demo", "name": arm.tool_name, "input": {"action": action, **fields}}
    async for event in arm.stream(tool_use, {}):
        return event.tool_result

refused = asyncio.run(call("execute", instruction="pick up the cube", policy_provider="lerobot_local",
                           policy_config={"pretrained_name_or_path": "lerobot/smolvla_base"}, duration=10))
print(refused["status"])
print(refused["content"][0]["text"].split(" No tool_context")[0])
arm.cleanup()

error
so101: 'execute' drives the real robot 'so101' for up to 10s with 'pick up the cube' (policy lerobot_local built in this process, no server, checkpoint pretrained_name_or_path lerobot/smolvla_base); it needs operator approval before it is dispatched.

With no operator to ask, the call fails closed. Inside an Agent that sentence is the question the operator answers with y (Talk to it). Over the mesh policy_config travels but embodiment does not yet (#4180), so run a Hub checkpoint on a real arm from the process that owns it.

Where next¶

You now have one checkpoint and one call for both arms, and you saw the gate refuse it by name. Next rung: Teach it records on your arm and trains the checkpoint you run back on it. Policies lists every provider.
