Newton Backend (GPU-native)

The Newton backend runs the simulation on newton-physics/newton, NVIDIA's GPU-accelerated physics engine built on Warp and MuJoCo-Warp. It implements the same SimEngine contract as the MuJoCo backend, so the Robot() / Simulation / policy APIs are identical - only the physics and rendering run on the GPU.

When to use it

• You have an NVIDIA GPU (Maxwell+, driver 545+, CUDA 12) and want GPU-resident physics and rendering.
• You want to choose among Newton's solvers (MuJoCo-Warp, Featherstone, XPBD, semi-implicit, ...).
• You want headless rendering without a display server - Newton renders with a ray-traced tiled camera sensor, so no GLX/EGL window is required.

On CPU-only hosts Warp falls back to its CPU device; the MuJoCo backend remains the recommended default for non-GPU machines.

Install

uv pip install "strands-robots[sim-newton]"

This pulls in newton, warp-lang, mujoco-warp, and trimesh on top of the MuJoCo extra. The backend is lazy-loaded: MuJoCo-only users pay no import cost.

Usage

from strands_robots.simulation import create_simulation

# "nt" is an alias for "newton".
sim = create_simulation("newton", solver="mujoco")
sim.create_world()
sim.add_robot("so100")          # reuses the same MJCF assets as MuJoCo

sim.send_action({"Rotation": 0.5}, robot_name="so100", n_substeps=100)
print(sim.get_observation("so100"))   # {"Rotation": ..., "Pitch": ..., ...}

# Headless rollout with a recorded video (RGB MP4).
sim.run_policy(
    robot_name="so100",
    policy_provider="mock",
    instruction="wave",
    n_steps=60,
    control_frequency=20.0,
    video={"path": "/tmp/rollout.mp4", "fps": 20, "width": 480, "height": 360},
)
sim.destroy()

Solvers

Pass solver= to create_simulation("newton", solver=...). The rigid-body solvers used by articulated robots are:

Name	Newton class	Notes
mujoco (default)	SolverMuJoCo	MuJoCo-Warp; requires mujoco-warp
featherstone	SolverFeatherstone	Reduced-coordinate articulated-body
xpbd	SolverXPBD	Position-based dynamics
semi_implicit	SolverSemiImplicit	Explicit semi-implicit integrator

vbd, style3d, mpm, and kamino are also resolvable for soft-body / particle scenes but are not exercised by rigid robot arms.

SolverMuJoCo requires at least one joint in the model; an empty world (ground plane only) defers solver creation until a robot is added, and stepping is a no-op until then.

Capabilities and parity

• add_robot ingests the same MJCF assets as the MuJoCo backend (resolved via strands_robots.assets) and, because Newton parses URDF natively, also loads URDF models directly (see "URDF robots via robot_descriptions" below). Joint names use the short trailing segment (Rotation, Pitch, ...), matching the MuJoCo backend exactly so policies and observation mappings transfer unchanged.
• render() returns the same agent-tool image block ({"image": {"format": "png", ...}}) as MuJoCo, so the shared PolicyRunner video pipeline works without modification.
• add_camera(name, position, target, fov=60, width, height, parent_body=None) registers named cameras, matching the MuJoCo signature. render(camera_name=...) returns the named view; multiple cameras coexist and get_observation() returns one RGB frame per camera keyed by name. A parent_body (a body label from list_bodies) mounts the camera ON that body so a wrist camera tracks the arm. remove_camera(name) / list_cameras() round out the API and describe()["cameras"] lists every registered camera.
• run_policy / eval_policy / replay_episode are inherited from the SimEngine ABC - no backend-specific re-implementation.
• describe() reports the active solver, available solvers, device, and the current gravity vector and timestep.
• Gravity configured via create_world(gravity=[x, y, z]) or set_gravity drives the dynamics. Newton's solvers snapshot gravity at construction and its builder only expresses gravity as a scalar along the up-axis, so the full vector is written onto the finalised model before the solver is built; off-axis components are honoured rather than dropped. set_gravity accepts either a scalar (the z-component) or a 3-element [x, y, z] list and rebuilds the model, which re-initialises the world to its rest pose. set_timestep takes effect on the next step() without a rebuild.

URDF robots via robot_descriptions

Newton loads URDF natively, so add_robot can pull robots straight from the robot_descriptions package - including the large URDF-only long tail (humanoids, quadrupeds, hands, dual-arm rigs) that has no MJCF model and is therefore unavailable to the MuJoCo backend.

The source selector on add_robot controls resolution:

source	Resolution
None (default)	Curated registry / MJCF asset manager first, then a robot_descriptions URDF fallback.
"registry"	Curated registry / MJCF asset manager only (no URDF fallback).
"robot_descriptions"	URDF directly via robot_descriptions.<name>_description.URDF_PATH.

sim = create_simulation("newton", solver="mujoco")
sim.create_world()

# Load the Franka Panda from its robot_descriptions URDF (no curated entry needed).
sim.add_robot("panda", source="robot_descriptions")
print(sim.robot_joint_names("panda"))
# ['panda_joint1', ..., 'panda_joint7', 'panda_finger_joint1', 'panda_finger_joint2']

sim.step(10)   # real GPU model build + step

The asset format is detected from the resolved path: .urdf files load through Newton's URDF importer, everything else through the MJCF importer. An explicit urdf_path= argument always wins and bypasses source.

list_urdfs() returns the union of the registry listing and the robot_descriptions URDF long tail; its json block exposes robot_descriptions_urdf (the sorted list of URDF-discoverable names) for programmatic use. The cheap name lookups behind this (urdf_descriptions_module, is_urdf_discoverable, list_urdf_discoverable) live in strands_robots.registry.discovery and read a static table with no import and no network; resolving an actual URDF path clones the upstream asset repository on first use.

Scene discovery and state queries

The backend exposes the same discovery and per-joint state surface as the MuJoCo backend, so agents can introspect a Newton world without guessing method names:

• get_robot_state(robot_name=None) returns each joint's position and velocity (read from joint_q / joint_qd respectively) in a json block, plus a human-readable summary.
• list_robots_info() and list_objects() return pretty-printed listings of the robots and primitive objects in the world.
• list_bodies(robot_name=None) lists Newton body labels and, when scoped to a robot, resolves a best-guess gripper_body mount (a body whose trailing path segment contains gripper, hand, jaw, ee, or tool).
• move_object(name, position=None, orientation=None) repositions an existing object and rebuilds the model, preserving live joint targets.
• get_features(robot_name=None) reports the model's joint / body / DOF counts, timestep, solver, and per-robot joint listings (matching the MuJoCo features schema).
• list_urdfs() / register_urdf(data_config, urdf_path) read from and write to the shared model registry, so assets registered for one backend resolve for the other.

describe() also advertises these methods (and the available cameras / bodies) so a single call surfaces the full contract.

sim.add_robot("so100")
sim.send_action({"Rotation": 0.6, "Elbow": -0.4}, robot_name="so100", n_substeps=10)

state = sim.get_robot_state("so100")["content"][1]["json"]["state"]
# {"Rotation": {"position": 0.03, "velocity": 3.72}, ...}

mount = sim.list_bodies("so100")["content"][1]["json"]["gripper_body"]
# "so_arm100/.../Fixed_Jaw"

Live viewer

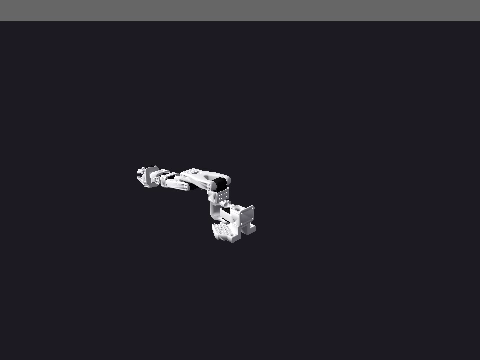

Bring an interactive view up on the running model with open_viewer(), mirroring the MuJoCo backend's viewer entry point. Newton ships several first-class viewers; open_viewer wraps them and feeds one frame per control step, so the view tracks the simulation live while step, send_action, or run_policy drive it from the calling thread.

sim = create_simulation("newton", solver="mujoco")
sim.create_world()
sim.add_robot("so100")

sim.open_viewer()                 # "auto": GL window if a display is present
# ... or pick a viewer explicitly:
sim.open_viewer("viser", port=8080)   # browser dashboard at http://localhost:8080
sim.open_viewer("gl")                 # native OpenGL window (needs a display)

sim.run_policy(robot_name="so100", policy_provider="mock", n_steps=200)
sim.close_viewer()

Viewer kinds (the viewer argument):

• "auto" (default) - opens the "gl" window when a display server is present (DISPLAY / WAYLAND_DISPLAY set), otherwise falls back to "viser" so headless hosts still get a live view.
• "gl" - newton.viewer.ViewerGL native OpenGL window. Requires a display; on a headless host open_viewer("gl") returns a structured error pointing at "viser" or render(...) instead of crashing.
• "viser" - newton.viewer.ViewerViser browser dashboard served at http://localhost:<port> (default 8080). Works headless - no display required - which makes it the right choice for live inspection on a remote GPU box. The success message reports the dashboard URL.
• "null" - newton.viewer.ViewerNull no-op sink (useful for tests and benchmarks).

The viewer renders Newton's own free 3D camera (orbit / pan / zoom in the window or browser), independent of the single fixed render() view, so camera framing is adjusted interactively rather than by name. The handle is released automatically when the window is closed, on close_viewer(), and on destroy(); a dead viewer never interrupts stepping. Adding or removing robots rebinds the viewer to the rebuilt model so it keeps tracking the live scene.

The interactive viewer is driven on the thread that steps the simulation, so open it and then call the blocking run_policy / step on the same thread. For a fully headless, non-interactive artifact, keep using run_policy(video={...}) to emit an MP4.

Dataset recording

The Newton backend records to the same LeRobotDataset format as the MuJoCo backend, so it drives the full dataset-collection workflow:

sim = create_simulation("newton", solver="mujoco")
sim.create_world()
sim.add_robot("so100")

sim.start_recording(repo_id="local/newton_demo", task="pick the cube", fps=30)
for _ in range(n_episodes):
    sim.run_policy(robot_name="so100", policy_provider="mock", n_steps=200)
    sim.save_episode()          # flush this rollout as one episode
result = sim.stop_recording()   # finalize parquet + video
sim.verify_dataset_episodes(n_episodes)   # parquet-truth check

start_recording declares the dataset schema from the live scene - joint names from every robot (namespaced robot__joint in multi-robot scenes) plus any named cameras registered on the world, each at its real render resolution. The on_frame hook the shared run_policy loop invokes feeds joint state, action, and rendered camera frames to the recorder every control step. Episode boundaries (save_episode), finalization (stop_recording), and the parquet-correctness gate (verify_dataset_episodes) are inherited from the backend-agnostic recording lifecycle, so a Newton recording satisfies the same contract as MuJoCo: total_episodes == N, episode parquet num_rows == N, and len(unique(episode_index)) == N. Prefer run_policy(n_episodes=N), which flushes an episode boundary automatically after each rollout.

Recording requires the lerobot extra (pip install "strands-robots[lerobot]"). When no named cameras are registered the dataset records joint state and action only (a valid proprio-only dataset); camera columns are added automatically once cameras are registered on the world.

Domain randomization and sensor noise

Sim2real workflows need per-episode variation so policies do not overfit to the default physics constants. The Newton backend mirrors the MuJoCo randomize contract (same keyword names and defaults for the axes it supports) and adds set_obs_noise for additive Gaussian sensor noise.

sim = create_simulation("newton", solver="mujoco")
sim.create_world()
sim.add_robot("so100")

# Per-episode domain randomization. Physics is opt-in (matches MuJoCo's
# randomize_physics=False default); colors and lighting are on by default.
for episode in range(10):
    sim.reset()
    result = sim.randomize(
        randomize_colors=True,
        randomize_lighting=True,
        randomize_physics=True,
        mass_range=(0.8, 1.2),       # multiplicative scale on per-body mass
        friction_range=(0.5, 1.5),   # multiplicative scale on per-shape friction
        seed=episode,                # deterministic per episode
    )
    scales = result["content"][1]["json"]
    # scales["mass_scales"], scales["friction_scales"], scales["light_direction"]
    sim.run_policy(robot_name="so100", policy_provider="mock", n_steps=60)

What each axis changes (applied to the Newton ModelBuilder before the immutable model is finalised, then rebuilt):

Axis	What changes	Range param
randomize_colors	Per-shape RGB (builder.shape_color)	color_range
randomize_lighting	Directional-light orientation (re-steered each render)	-
randomize_physics	Per-body mass + inertia (body_mass / body_inertia) and per-shape friction (shape_material_mu)	mass_range, friction_range

Physics randomization scales mass and inertia together (inertia tracks mass for fixed geometry); Newton recomputes the inverse mass/inertia at finalisation. Reproducibility: a fixed seed yields an identical multiplier sequence for a given scene, because the builder visits bodies and shapes in a deterministic order. The applied multipliers are returned in the json block so callers can log or assert the per-episode physics. Object-position randomization (randomize_positions) is not supported by the Newton backend yet; requesting it returns an explicit error rather than silently doing nothing.

Sensor noise

set_obs_noise adds additive Gaussian noise so observations carry realistic measurement error. It applies to every get_observation / get_robot_state and every rendered camera frame until reconfigured (pass all-zero to disable):

sim.set_obs_noise(
    joint_pos_std=0.01,     # radians, added to joint positions
    joint_vel_std=0.05,     # rad/s, added to joint velocities (get_robot_state)
    camera_jitter_px=2,     # max integer pixel shift on rendered frames
    seed=0,                 # reproducible noise stream
)
obs = sim.get_observation("so100")   # joint positions now carry +/- noise

describe() advertises both randomize and set_obs_noise so a single call surfaces their signatures.

Mesh objects

add_object accepts triangle-mesh assets in addition to primitives, at parity with the MuJoCo backend:

sim.add_object(name="tool", shape="mesh", mesh_path="/abs/path/widget.obj",
               position=[0.3, 0.0, 0.05], mass=0.2)

mesh_path accepts anything trimesh.load reads (.obj, .stl, .glb, .usd, ...). The asset is parsed once (cached by path), converted to a newton.Mesh, and added as a collision/visual shape; size acts as a per-axis scale (default [1, 1, 1], the mesh's own units). move_object and remove_object work on mesh objects, and list_objects() reports the mesh path. Mesh loading requires the sim-newton extra (which ships trimesh).
