Examples

strands-robots-sim ships runnable example drivers under examples/ that mirror the upstream strands-robots/examples/ layout. Every Isaac example has a programmatic sibling and a Strands-Agent natural-language sibling so you can pick the driver that matches your audience.

Two execution patterns per backend

File Driver Best for
<benchmark>/run_<backend>.py Programmatic — Python script calls sim.evaluate_benchmark(...) directly CI / matrix tables / benchmark numbers
<benchmark>/run_<backend>_agent.py Strands Agent + natural language — script owns the deterministic plumbing (GR00T container lifecycle, scene pre-warm, MP4 recording); a single agent("…") call invokes the eval and produces a prose summary Demos / "what does a Strands integration buy?"

The programmatic file prints two grep-stable lines that the flagship libero_backend_matrix.py driver subprocess-and-parses for the side-by-side table:

benchmark_name=libero-spatial-pick_up_the_red_cube
policy=groot task=libero-spatial-pick_up_the_red_cube success_rate=1.00 wall_time=44.3s

The agent file's output is non-deterministic LLM-generated prose — for human inspection only, not for matrix ingestion.

Two policy choices

Both files in every pair accept --policy {mock,groot}:

Flag Provider When Reproducibility
--policy mock (default) random-action stub from strands_robots.policies.mock Smoke tests / CI / no-GPU dev boxes / "did the plumbing work" sanity check Deterministic given --seed
--policy groot NVIDIA GR00T VLA, served via nvcr.io/nvidia/isaac-gr00t Docker on --port 8000 against the suite-specific nvidia/GR00T-N1.7-LIBERO/libero_<suite>/ checkpoint Real LIBERO success-rate measurements Depends on the GR00T checkpoint + service config

Both example files orchestrate the GR00T container lifecycle (build → checkpoint download → start → wait-for-ready → teardown) deterministically from the script via gr00t_inference(action='lifecycle', ...). The agent file's agent isn't asked to manage Docker / HF cache — those are brittle for an LLM and stay under Python control. Pass --no-auto-server to either file to reuse an already-running container instead.

Backend matrix (LIBERO)

Same task — libero-spatial-pick_up_the_red_cube, 10 episodes, seed 42 — on the two supported backends, with success rate and wall-time recorded side-by-side. Numbers come from the programmatic file with --policy=groot against the matching libero_<suite>/ sub-checkpoint unless a row says otherwise; mock-policy smoke runs are reference only.

Example Backend n_envs Renderer Why use this row Wall-time @ success-rate
libero/run_mujoco.py MuJoCo (in strands-robots) 1 Software / GL Default; macOS + Apple Silicon OK; fast iteration ~9 s/ep @ 1.00 (groot)[^1]
libero/run_isaac.py Isaac Sim 1 RTX path-traced Photoreal eval, demo videos, paper-grade frames measured by libero_backend_matrix.py; lifecycle validated in PR #74

IsaacLab-style fleet RL (n_envs=4096) is surfaced by the flagship matrix driver libero_backend_matrix.py as a separate run_isaac_fleet.py row (isaac-4096), which reads unavailable until that driver lands. The flagship driver walks the rows and prints a unified table; each row also has a stand-alone example you can run in isolation. Roadmap and follow-ups are tracked under the umbrella #8.

[^1]: Single-sample on the L4 reference dev box (libero-10/SCENE5, seed=42, n=5). Pre-strands-labs/robots#188 success rate was 0.20–0.60 across re-runs; post-#188 it stabilises at 1.00.

Running the Isaac Sim baseline

pip install 'strands-robots-sim[isaac]' \
    'strands-robots[benchmark-libero] @ git+https://github.com/strands-labs/robots.git@main'

# 1) Programmatic smoke test (mock policy). Loads the default Franka USD.
python examples/libero/run_isaac.py --policy mock --n-episodes 5

# 1b) Bring your own robot asset:
python examples/libero/run_isaac.py --policy mock --robot-usd /path/to/robot.usd
python examples/libero/run_isaac.py --policy mock --robot-urdf /path/to/robot.urdf

# 2) Strands-Agent + natural language (needs `strands-agents` + an LLM provider):
pip install strands-agents
python examples/libero/run_isaac_agent.py --policy mock

# 3) Real eval against the matching `libero_<suite>/` sub-checkpoint
#    (auto-orchestrates the GR00T container; pass --no-auto-server to reuse one):
python examples/libero/run_isaac.py --policy groot --port 8000 --n-episodes 50

Each invocation produces an MP4 under rollouts/YYYY_MM_DD/. Filename encodes --task=<benchmark_name>, --policy=mock|groot, --seed=S, and either --n_eps=N (programmatic) or --agent marker (agent file) so post-hoc analysis can tell what produced each file.

Isaac-specific gotchas

The Isaac drivers differ from the MuJoCo ones in three load-bearing ways:

  1. Real-asset robot. Instead of a LIBERO MJCF, the script loads a real robot via add_robot(usd_path=...) — by default Isaac Sim's bundled Franka Panda USD, resolved from the assets root over the public Omniverse CDN (no local Nucleus needed). Override with --robot-usd PATH or --robot-urdf PATH. (A real asset is required because the procedural builder is a kinematically-approximate stick-figure unusable by a LIBERO manipulation policy.)
  2. Explicit camera. Isaac doesn't auto-attach a viewport camera the way MuJoCo's mjData does, so the script makes an explicit add_camera(...) call at the LIBERO agentview vantage before the eval.
  3. Isaac-specific container name (gr00t-libero-isaac) so Isaac and MuJoCo --policy=groot runs don't clobber each other's containers on the same host.

Requires Isaac Sim installed separately (it is not pip-installable — Omniverse Launcher / Isaac Lab / NGC Docker, RTX GPU, CUDA 12+). On a non-Isaac host both scripts exit early with a diagnostic from IsaacSimulation.is_available() rather than crashing on the first omni.* import.

Other Isaac examples

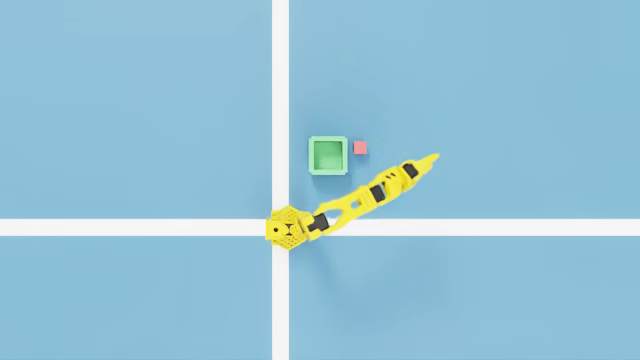

In addition to the LIBERO drivers, the repo ships two visually-driven demos under examples/:

Each subdir has its own README with run instructions.
