Isaac Sim Backend

GPU-native photorealistic simulation backend for strands-robots-sim using NVIDIA Isaac Sim. This page is the backend reference — class layout, current status, configuration matrix, procedural builders, loaders, and tests.

For introductory material, prefer:

• Getting Started → Installation — Isaac Sim install + pip install 'strands-robots-sim[isaac]'.
• Getting Started → Quickstart — first RTX render in a fresh world.
• Architecture — the entry-point plugin contract.
• Simulation → World Building — the add_robot / add_object / add_camera reference.

Overview

IsaacSimulation provides:

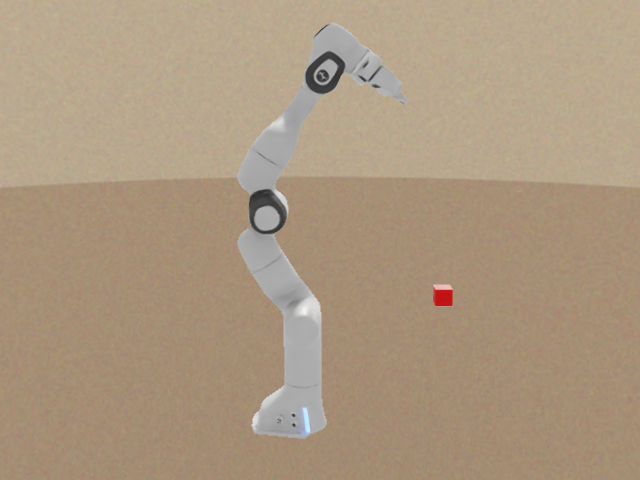

• Photorealistic rendering via Omniverse RTX (path-traced, ground-truth depth, semantic segmentation)
• Asset pipeline: USD-native scenes, NVIDIA Nucleus assets
• Sensors: RTX cameras, LiDAR, depth, contact, IMU (GPU-batched)
• Synthetic data generation: Replicator pipeline for domain randomization
• Fleet replication: parallel environments via omni.isaac.cloner.Cloner
• Isaac Lab integration: GPU-accelerated RL environments

On the omni.isaac.* vs isaacsim.* namespaces

Isaac Sim 4.5 ships every runtime extension under two namespaces: the legacy omni.isaac.* tree (retained as Kit-extension deprecation shims that resolve correctly post-bootstrap on the pinned nvcr.io/nvidia/isaac-sim:4.5.0 image) and the modern isaacsim.* tree. This backend deliberately keeps the legacy omni.isaac.* import paths for the core API (omni.isaac.core.World, omni.isaac.core.objects, omni.isaac.sensor.Camera, omni.isaac.core.articulations.Articulation, omni.isaac.cloner), and uses the modern isaacsim.* path only where the legacy module was removed in 4.5 — the SimulationApp entry point (isaacsim.SimulationApp, with omni.isaac.kit as a fallback) and the URDF importer (isaacsim.asset.importer.urdf). The omni.isaac.* references on this page therefore match the shipping code; see PR #74 for the validation and the in-code policy note in simulation.py.

Status. The core simulation data-plane is wired and was validated end-to-end on the pinned nvcr.io/nvidia/isaac-sim:4.5.0 image in PR #74 (full lifecycle: is_available → create_world → add_robot(usd_path=...) → add_camera → step). Working today: IsaacConfig, IsaacSimulation.is_available(), world / lifecycle (create_world / destroy / cleanup); procedural builders via add_robot("so100" | "panda" | "unitree_g1"); scene primitives via add_object / remove_object (shape primitives through omni.isaac.core.objects.{Dynamic,Fixed}{Cuboid,Sphere,Cylinder,Capsule}); cameras via add_camera / remove_camera (omni.isaac.sensor.Camera — prim + look-at + FOV wired); render's RTX frame-extraction path against an add_camera handle (real get_rgba / get_depth calls; returns blank frames in headless mode, when no camera is configured, or against a camera with no RTX handle attached); USD-loaded robots via add_robot(name, usd_path=...) and URDF-loaded robots via add_robot(name, urdf_path=...) (both construct the underlying omni.isaac.core.articulations.Articulation — joints + send_action / get_observation work end-to-end; URDF→USD conversion runs through the direct isaacsim.asset.importer.urdf interface); and the isaac.loaders.load_urdf / load_mjcf / load_usd functions for ingesting external robot description files into a ProceduralRobot dataclass. Genuinely still no-op: replicate (fleet replication), and the articulation-touching paths under get_observation / send_action for procedural robots specifically — the procedural branch of add_robot authors USD prims via the build-via-API flow but does not construct an Articulation handle, so a procedural robot's get_observation() returns {} and no joint state is read; no exception is raised. USD- and URDF-loaded robots run end-to-end — use those (or load a real Franka USD) for any manipulation eval. For the running benchmark caveat (evaluate_benchmark under Isaac Sim's bundled Python) see Examples → Overview and the umbrella tracker #8.

Installation

Isaac Sim is not installable from PyPI. It is an NVIDIA Omniverse Kit application that must be installed separately.

Option 1: NVIDIA Omniverse Launcher (recommended)

1. Download NVIDIA Omniverse Launcher
2. Install Isaac Sim 4.5 (or newer) from the Exchange tab
3. Install Python dependencies:

pip install 'strands-robots-sim[isaac]'

Option 2: Isaac Lab

git clone https://github.com/isaac-sim/IsaacLab.git
cd IsaacLab
./isaaclab.sh -i
pip install 'strands-robots-sim[isaac]'

Option 3: Docker

docker pull nvcr.io/nvidia/isaac-sim:4.5.0
docker run --gpus all -it nvcr.io/nvidia/isaac-sim:4.5.0
# Inside container:
pip install 'strands-robots-sim[isaac]'

Requirements

• NVIDIA GPU (RTX 2070+ or A100/H100 for fleet training)
• CUDA 12.0+
• Isaac Sim 4.5 or newer (the repo pins/tests nvcr.io/nvidia/isaac-sim:4.5.0)
• Linux (Ubuntu 22.04+ recommended)
• Python 3.10+

Quick Start

from strands_robots_sim.isaac import IsaacSimulation, IsaacConfig

# Check availability
available, reason = IsaacSimulation.is_available()
if not available:
    print(f"Isaac Sim not available: {reason}")
    exit(1)

# Create simulation
config = IsaacConfig(
    num_envs=1,
    headless=True,
    render_mode="rtx_realtime",
)
sim = IsaacSimulation(config)

# Create world and add robot
sim.create_world()
sim.add_robot("so100")
sim.add_camera("front_cam", position=[1.0, 0.0, 0.5])

# Step and render
sim.step(100)
result = sim.render("front_cam")
rgb = result["rgb"]  # (H, W, 3) uint8

# Clean up
sim.destroy()

Fleet Training (Multi-Env)

config = IsaacConfig(num_envs=1024, headless=True)
sim = IsaacSimulation(config)
sim.create_world()
sim.add_robot("so100")
sim.replicate(1024)  # 1024 parallel environments

for step in range(10000):
    sim.step(1)
    obs = sim.get_observation("so100")  # batched across all envs
    # ... RL training loop ...

sim.destroy()

Entry-Point Discovery

Isaac Sim registers as a strands_robots.backends entry point:

from importlib.metadata import entry_points

for ep in entry_points(group='strands_robots.backends'):
    print(ep.name, '->', ep.value)
# isaac -> strands_robots_sim.isaac.simulation:IsaacSimulation
# isaac_sim -> strands_robots_sim.isaac.simulation:IsaacSimulation

Configuration

IsaacConfig Parameters

Parameter	Default	Description
num_envs	1	Number of parallel environments
device	"cuda:0"	CUDA device
headless	True	Run without GUI
physics_dt	1/120 s	Physics timestep
rendering_dt	1/30 s	Rendering timestep
render_mode	"headless"	"headless", "rtx_realtime", or "rtx_pathtracing"
gravity	(0, 0, -9.81)	Gravity vector (Z-up)
camera_width	640	Default camera width
camera_height	480	Default camera height
enable_rtx_sensors	True	Enable RTX-accelerated sensors

Environment Variables

Variable	Default	Description
STRANDS_ISAAC_HEADLESS	-	Override headless mode ("true"/"false")
STRANDS_ISAAC_RTX_PATHTRACING	-	Enable RTX pathtracing ("true"/"false")
STRANDS_ISAAC_NUCLEUS_URL	-	Override Omniverse Nucleus server URL

Procedural Robots

The following robots can be added without any asset files:

• so100 (aliases: so-100, so_100, so101) -- 6-DOF tabletop arm
• panda (aliases: franka, franka_panda) -- 7-DOF manipulator
• unitree_g1 (aliases: g1) -- 21-DOF humanoid (simplified). The six 2-DOF compound joints (hips / ankles / shoulder-yaw + elbow on each arm) are split through massless intermediate *_link bodies so the kinematic graph is a valid tree by construction.

sim.add_robot("so100")  # procedural, no asset files needed
sim.add_robot("panda")
sim.add_robot("g1", data_config="unitree_g1")

Every procedural builder validates the kinematic graph at construction time via _validate_kinematic_tree: a robot whose joint set has a duplicate (parent_body, child_body) edge fails fast with ValueError listing the offending bodies + joint names. Validation is fail-first by default with no env-var escape hatch — shipping a knowingly-broken robot has no good use case in this package.

Loading External Description Files (URDF / MJCF / USD)

The strands_robots_sim.isaac.loaders module produces ProceduralRobot dataclass instances from existing robot description files, so callers don't have to add a new _build_* function for every robot they need. Three formats are supported:

from strands_robots_sim.isaac.loaders import load_urdf, load_mjcf, load_usd

# URDF -- stdlib XML; no third-party deps required.
panda_urdf = load_urdf("/path/to/panda.urdf")

# MJCF (MuJoCo XML) -- stdlib XML; LIBERO scenes, robosuite assets.
panda_mjcf = load_mjcf("/opt/conda/.../robosuite/models/assets/robots/panda/robot.xml")

# USD -- requires `pxr` (ships in the [isaac] extra).
panda_usd = load_usd("/path/to/panda.usda")

# All three return the same dataclass shape.
print(panda_urdf.num_joints, panda_urdf.joint_names)

The loaders share failure semantics: missing path raises FileNotFoundError, malformed document raises ValueError with the offending element + path, and an empty document (zero links / joints / bodies) also raises ValueError. Loaders never silently return a phantom robot.

The hardcoded _build_* functions in procedural.py remain as a zero-dep, testable fallback used when no description file is configured. Loaders layer on top.

The loader module is verified against the seven robosuite-bundled MJCFs that the strands-robots LIBERO adapter consumes (panda / iiwa / kinova3 / jaco / sawyer / ur5e / baxter); the parity tests live in strands_robots_sim/isaac/tests/test_loaders.py::TestRobosuiteMjcfParity.

Comparison with the upstream MuJoCo backend

Feature	MuJoCo (strands-robots)	Isaac Sim (this repo)
Physics parallelism	1-8 envs	1024+ envs
Apple Silicon	Yes	No (CUDA only)
Rendering	Software / GL	RTX photorealistic
USD native	No	Full
Sensors (camera, LiDAR)	Basic	RTX GPU-batched
Synthetic data gen	No	Replicator
Install size	~50 MB	~30 GB
Setup friction	Low	High
Use case	Fast iteration / CI / macOS	Photoreal sim2real / fleet RL

For the cross-backend story (when to pick which) see Simulation → Overview.

Architecture

strands_robots_sim/isaac/
    __init__.py         PEP 562 lazy exports (zero omni overhead on import)
    _install.py         Single source of truth for Isaac Sim install metadata
                        (docker image tag, Omniverse Launcher hint, Isaac Lab
                        bootstrap) — composes ImportError messages and the
                        is_available() reason string from these constants
    config.py           IsaacConfig dataclass + validation
    simulation.py       IsaacSimulation(SimEngine) -- main backend class
    procedural.py       SO-100 / Panda / G1 builders + kinematic-tree guard
    loaders.py          URDF / MJCF / USD -> ProceduralRobot loaders
    tests/
        test_unit.py                          Mocked tests (no GPU)
        test_entrypoint.py                    Entry-point + lazy-import surface
        test_get_observation_diagnostic_logs.py   WARNING/DEBUG level pins
        test_procedural_g1_dof.py             G1 DOF-count drift pin
        test_procedural_kinematic_guard.py    Fail-first kinematic-tree pin
        test_loaders.py                       URDF / MJCF / USD round-trip +
                                              robosuite real-asset parity tests
        test_gpu_integ.py                     GPU tests (STRANDS_GPU_TEST=1)

Thread Safety

• All mutable state protected by threading.RLock
• step() must not run concurrently with add_robot()
• SimulationApp is a process-wide singleton (never create more than one)
• destroy() clears the World but does NOT shut down SimulationApp

Testing

# Unit tests (no GPU required)
pytest strands_robots_sim/isaac/tests/test_unit.py -v
pytest strands_robots_sim/isaac/tests/test_entrypoint.py -v
pytest strands_robots_sim/isaac/tests/test_loaders.py -v
pytest strands_robots_sim/isaac/tests/test_procedural_g1_dof.py -v
pytest strands_robots_sim/isaac/tests/test_procedural_kinematic_guard.py -v

# Or all of the above in one go (skips the GPU file by default):
pytest strands_robots_sim/isaac/tests/ --ignore=strands_robots_sim/isaac/tests/test_gpu_integ.py

# GPU integration tests (requires Isaac Sim)
STRANDS_GPU_TEST=1 pytest strands_robots_sim/isaac/tests/test_gpu_integ.py -v
