Microduck — locomotion policies for the Pollen 14-DOF biped¶

MicroduckPolicy wraps one of Pollen Robotics' shipped Microduck ONNX policies (alpha_walking, alpha_stand, alpha_sitstand, roulade, ball_kick_left/ball_kick_right, roller/roller_crouch, alpha_ground_pick) and drives the open 14-DOF biped through the standard Robot(...).run_policy seam — in MuJoCo or on hardware.

Each export is an actor with its input normaliser fused into the graph, so the provider feeds the observation raw and never re-normalises. The policy also self-configures from the ONNX metadata: joint_names, default_joint_pos, action_scale and command_names are read from the file's custom_metadata_map on first inference, so pointing it at a different weight file reconfigures it. Explicit constructor arguments always win.

Walking in MuJoCo¶

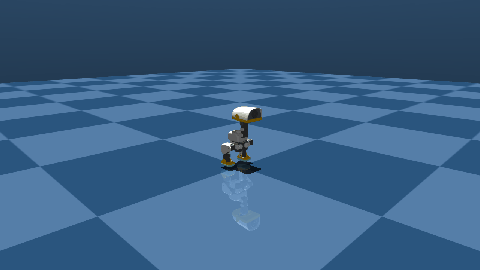

Microduck walking in MuJoCo

alpha_walking.onnx driven forward at vx=0.3 m/s, filmed with a body-tracking chase camera. Reproduce with examples/microduck/render_video.py:

export DYLD_FALLBACK_LIBRARY_PATH=/opt/homebrew/lib  # macOS: Homebrew ffmpeg
python examples/microduck/render_video.py \
    --onnx ../microduck/policies/alpha_walking.onnx \
    --vx 0.3 --duration 8 --out walk_forward.mp4 \
    --gif docs/assets/microduck/microduck_walk.gif

render_video.py steps the sim manually at the control frequency and captures each frame with a tracking camera locked to the pelvis, so the duck stays centered as it walks. --vx/--vy/--vyaw set the twist command, and any weight that runs on the default scene (alpha_stand, roulade, alpha_sitstand, alpha_ground_pick) drops straight in. The script builds Robot("microduck"), so the four skills that need a different scene - roller, roller_crouch, ball_kick_left, ball_kick_right - need the scene named for them in Skill scenes below.

Install¶

pip install "strands-robots[microduck]"

That pulls onnxruntime (runs the graph). Weights are not bundled — they ship in Pollen's microduck repository under policies/*.onnx. A MuJoCo rollout additionally needs strands-robots[sim-mujoco].

Walk in simulation¶

from strands_robots import Robot
from strands_robots.policies.microduck import MicroduckPolicy

sim = Robot("microduck")
sim.reset()

policy = MicroduckPolicy(onnx_path="alpha_walking.onnx")
sim.run_policy(
    policy_object=policy,
    control_frequency=50,
    duration=8.0,
    policy_kwargs={"target_velocity": [0.3, 0.0, 0.0]},  # forward twist
)

See examples/microduck/microduck_walk_sim.py for the runnable script.

Skill scenes¶

A shipped weight and the scene it was trained in are one pair. Robot("microduck") resolves the entry's declared asset - flat ground, no props - which is what the walking, standing, sitstand, roulade and ground-pick skills need. Four skills need something the default scene does not contain, and Pollen ships the scene for each one in the same asset directory:

skill	scene	what the scene adds
`alpha_walking`, `alpha_stand`, `alpha_sitstand`, `roulade`, `alpha_ground_pick`	`scene.xml` (the entry's declared asset)	nothing - flat ground
`roller`, `roller_crouch`	`scene_rollers.xml`	four passive ankle wheels, so the feet can roll
`ball_kick_left`, `ball_kick_right`	`scene_ball.xml`	a 70 mm, 15 g ball placed in front of the duck

Reach a non-default scene by path. The registry entry names the fourteen-hinge model deliberately - it is the layout the catalog documents - so the variants are loaded as an explicit asset rather than resolved by name:

from pathlib import Path

from strands_robots import Robot
from strands_robots.policies.microduck import MicroduckPolicy
from strands_robots.utils import get_search_paths

scene = next(
    candidate
    for root in get_search_paths()
    if (candidate := Path(root) / "microduck" / "scene_rollers.xml").exists()
)
sim = Robot("microduck", urdf_path=str(scene))
sim.reset()
sim.run_policy(policy_object=MicroduckPolicy(onnx_path="roller.onnx"), duration=8.0)

Running a skill on the default scene is not an error and reports success: a roller policy writes the same fourteen control targets, and with no wheels under the feet the duck simply stands; a ball-kick policy swings at a ball that is not there. Nothing refuses it, so the scene is the caller's to choose.

The ball scene carries the ball, not the kick geometry¶

scene_ball.xml places the prop, and where it sits is not where the kick policies were trained to find it. The scene declares the ball 0.3 m straight ahead (ball.xml: pos="0.3 0 0.035"). Pollen's training reset placed it 0.09 m ahead and 0.042 m to the side of the kicking foot, in the robot's yaw frame - 3.3x closer, and offset laterally to the foot that swings.

Loading the scene is therefore necessary and not sufficient. Driven from the shipped position, ball_kick_left completes and reports success while no robot body ever touches the ball: across a four-second rollout the closest any robot geom comes to the ball centre is 0.109 m, against a 0.035 m radius. The ball still travels forward on its own - its geom sets a deliberately low rolling resistance - which is why the miss reads as a weak kick rather than as a miss.

A caller who wants the trained geometry teleports the ball before the rollout, which is what Pollen's runtime does at the moment a kick is triggered: write the ball free joint's qpos to that offset rotated into the trunk's yaw frame, zero the joint's qvel, and step. The file names the joint ball_free; add_robot(name=...) prefixes every joint with the name the caller passed, so resolve the name rather than assuming either spelling.

Reading joint positions on the rollers scene¶

scene_ball.xml appends the ball's free joint after the robot's, so the robot's qpos layout is byte-for-byte the default one. scene_rollers.xml does not: it inserts two passive wheel joints after left_ankle and two more after right_ankle, which moves nine of the fourteen actuated joints to a different qpos index. A consumer that reads a flat qpos[7:21] slice therefore reads different joints there - the two left wheels arrive where neck_pitch and head_pitch sit on the default scene.

The actuator order is identical across all three scenes, so a policy writing ctrl is unaffected, and MicroduckPolicy reads its observation by joint name rather than by slice, so the provider is immune either way. Only a raw position read has to care.

The stance every weight was trained in¶

A weight and its scene are one pair; so are a weight and the stance it starts from. Every shipped Pollen weight bakes that stance into its ONNX metadata as default_joint_pos, and all nine declare the same fourteen values. MicroduckPolicy reads it into default_pose and decodes every action relative to it - motor_target = default_pose + raw_action * action_scale - so the stance is not advice, it is the origin the network's output is measured from. The same values ship as strands_robots.policies.microduck.MICRODUCK_DEFAULT_POSE, the fallback the provider uses when a session carrying no metadata is injected.

The asset ships that stance too, as the STAND keyframe in scene.xml and scene_rollers.xml. Name it at spawn and the robot starts there:

sim = Robot("microduck", urdf_path=str(scene), keyframe="STAND")

A keyframe spawn is sticky across resets: sim.reset() restores the pose and the actuator command that holds it, so every episode of a run_policy + reset loop begins from the same stance.

Spawning without keyframe is not an error and reports success. The robot starts at the zero configuration, 0.458 rad from the trained stance at the widest joint - legs straight rather than crouched - while the policy still decodes relative to the stance it expects. Nothing refuses it, so the first inference of the rollout reads a pose no shipped weight was trained on.

Two details a caller meets:

The keyframe is named STAND. The asset's own comment calls the current values "STAND2", because they supersede an earlier STAND that is commented out beside them; the live keyframe kept the name. keyframe="STAND2" is refused, and the refusal names the keyframes the model does declare.
scene_ball.xml declares no keyframe at all, so the route above is unavailable on the one scene a ball kick needs. Seat the stance yourself there, reading it from MICRODUCK_DEFAULT_POSE rather than copying the numbers - the asset has already revised this pose once.

The observation contract¶

The vector is a fixed float32 concatenation (measured off Pollen's reference infer_policy.py and each ONNX's observation_names metadata):

block	width	source
`base_ang_vel`	3	IMU angular velocity
`projected_gravity`	3	world `-Z` rotated into the base frame from `base_quat`
`joint_pos`	14	current joint position − `DEFAULT_POSE`, contract order
`joint_vel`	14	joint velocity, contract order
`last_action`	14	the previous raw ONNX output (not the motor target)
`command`	C	unified command (`twist(3) + head_pose(4) + body_pose(6)`)

Total width is 48 + C: 61 for the shipped alpha policies (C = 13) and 51 for legacy twist-only policies (C = 3). The width is read from command_names, never hardcoded, and unused command slots stay present and zero (the dead-weight rule) so one observation layout serves every skill. Actions decode as motor_target = DEFAULT_POSE + action * action_scale.

action_scale is the only path from the network's output to the joint targets, so it must be a positive finite number. A scale of 0 would make every target exactly DEFAULT_POSE — the network's decision discarded and the biped holding its nominal stance while the rollout reports success — and a non-finite one would make all fourteen targets nan. Both routes to the decode are held to that domain: an explicit action_scale= and the value read from the ONNX action_scale metadata.

Commanding motion¶

The command vector defaults to all-zero (stand in place). Steer with the well-known target_velocity kwarg (writes the twist slots) or replace it wholesale with command=:

await policy.get_actions(obs, "", target_velocity=[0.3, 0.0, 0.2])  # vx, vy, ω

target_velocity takes three components ([vx, vy, omega]) or two ([vx, vy], which leaves omega at its current value - the command vector persists across ticks). Any other component count is refused rather than truncated or partially written, and a nan/inf component is refused before it reaches the command; command= must be command_names-wide and finite for the same reasons.

What the twist slots MEAN, however, is a property of the loaded weights rather than of this provider. Pollen's locomotion exports (alpha_walking, alpha_stand, the roller* pair) read them as a velocity, which is exactly what target_velocity writes. Other exports in the family read the same three slots differently - alpha_ground_pick, for instance, reads them as a progress encoding through a one-shot motion rather than as a velocity - and for those a caller supplies the slots wholesale through command= and advances them itself. target_velocity is a locomotion kwarg, not a universal one, and the ONNX metadata does not distinguish the two: several exports declare the same command_names (twist) while reading it under different conventions.

Hot-swapping skills¶

MicroduckPolicyBundle holds several MicroduckPolicy instances warm and delegates each tick to the active one, so a controller can switch skill mid-rollout without rebuilding sessions:

from strands_robots.policies.microduck import MicroduckPolicy, MicroduckPolicyBundle

bundle = MicroduckPolicyBundle(
    {
        "walk": MicroduckPolicy(onnx_path="alpha_walking.onnx"),
        "stand": MicroduckPolicy(onnx_path="alpha_stand.onnx"),
    },
    active="stand",
    switch_on_velocity=0.1,  # auto walk<->stand by |twist|
)

Select explicitly with get_actions(..., select="walk") or bundle.switch(...).

An explicit selection is not undone by the gate: it arbitrates between move_key and idle_key, and leaves any other skill alone until a gate key is selected again. That matters most for alpha_sitstand, whose twist[0] is a posture flag (1 sit, 0 stand) rather than a velocity — both of its commands have a magnitude the gate would otherwise read as a walk or an idle request, so neither would have reached the skill that was asked for.

switch_on_velocity must be a positive finite number. The gate compares a magnitude, so a threshold of 0 or below could never select the idle skill and a non-finite one could never select the move skill. Omit it (the default) to leave the gate off and switch only explicitly.

The velocity it is compared against is held to the same standard as the threshold it is compared with. With the gate on, a target_velocity this tick cannot honor is refused before the gate arbitrates, naming the bundle and the parameter — so a refused tick leaves the active skill exactly as it was, rather than selecting the idle skill from a nan magnitude and keeping that selection on every tick after. The accepted values are the ones the active skill accepts: finite numeric components, and the same two component counts documented above. An absent target_velocity is still simply "no goal this tick" and leaves the selection alone.

move_key and idle_key name the two skills that gate selects between, and each must be one of the bundle's own keys whenever the gate is enabled. The gate reads both every tick, so a key naming no held skill leaves it inert rather than failing — a bundle keyed by the weight names it loads (alpha_walking, alpha_stand) and left on the defaults "walk"/"stand" constructs, reports a validated threshold, and then never switches. Key by the names the gate expects, or pass move_key=/idle_key= to match the keys you used. With the gate off neither is read, and neither is checked.

Byte-compatibility¶

MicroduckPolicy.infer_raw(obs_vector) runs the graph on a raw observation with no normalisation — exactly as Pollen's reference deployment does. The provider's test suite pins that an identical 61-D observation yields an action byte-identical (0.0 max abs delta) to a bare onnxruntime session, and that a real MuJoCo rollout moves the joints.
